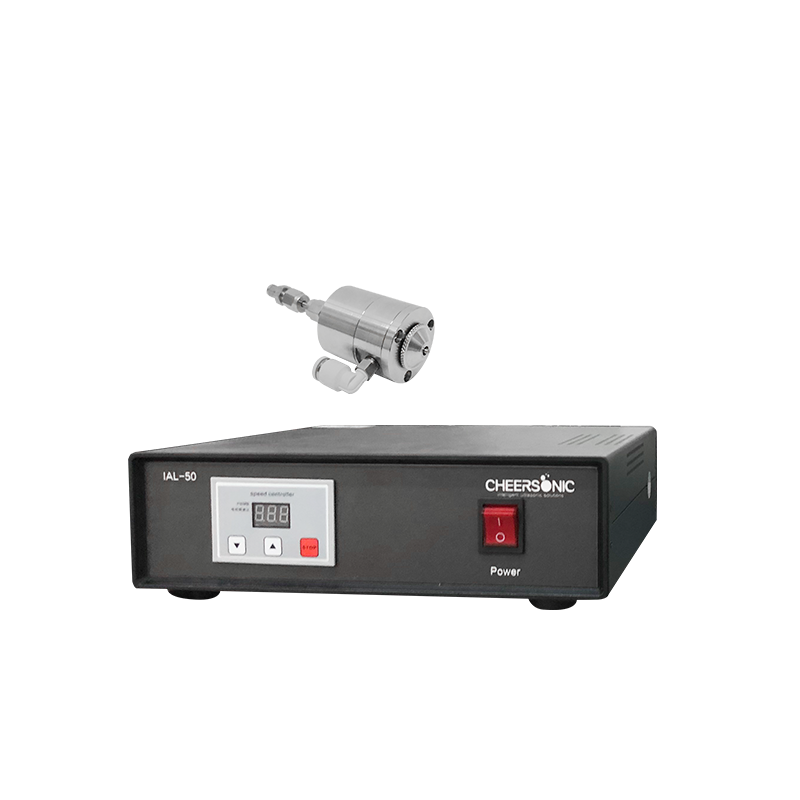

UCA120 Ultrasonic Spray Nozzle for Fuel Cell Catalyst Coating
Product Summary
The UCA120 ultrasonic spray nozzle is engineered for precision coating in fuel cell manufacturing. Operating at a high frequency of 120 kHz, it produces a fine, uniform mist with droplet sizes ranging from 18 to 200 μm. This nozzle ensures consistent catalyst deposition on proton exchange membranes (PEM), supporting the production of high-performance membrane electrode assemblies (MEAs). Its non-clogging design and low-pressure atomization protect delicate membrane materials, making it a reliable choice for both R&D and mass production.
Key Selling Points
- High-Frequency Precision: 120 kHz ultrasonic atomization delivers uniform droplets of 18-200 μm, enabling thin, controlled catalyst layers for enhanced fuel cell efficiency.
- Non-Clogging: The open nozzle design prevents blockages, ensuring uninterrupted operation and minimal maintenance downtime.
- Low-Pressure Safety: Gentle atomization without high-pressure airflow protects fragile PEM membranes from damage, reducing scrap rates.
- Wide Flow Range: Adjustable flow rate from 0.001 to 50 mL/min accommodates various coating speeds and material viscosities.
- Material Compatibility: Constructed from stainless steel and titanium alloy for durability and resistance to corrosive catalyst slurries.
Technical Specifications
| Parameter | Value |
|---|
| Model | UCA120 |
| Operating Frequency | 25–180 kHz |
| Power Consumption | 1–8 W |
| Flow Rate | 0.001–50 mL/min |
| Droplet Size | 18–200 μm |
| Liquid Viscosity | Up to 100 cP |
| Material | Stainless steel / titanium alloy |
Models and Options
The UCA120 is part of a comprehensive ultrasonic nozzle series. For different throughput requirements, consider the UCA50 (half flow rate) or the UCW120 (wide spray) models. Each model is available with customized flow rate and droplet size settings to match your specific coating process.
Materials and Structure
The nozzle is made of stainless steel and titanium alloy, ensuring corrosion resistance and long service life. Its robust construction supports operation in demanding industrial environments, including continuous production lines.
Applications
- Fuel cell MEA catalyst layer deposition
- Electrolyzer membrane electrode coating
- Lithium battery electrode functional coating
- Solar cell anti-reflective and passivation layer spraying
- Semiconductor photoresist and dielectric film coating
Customization
Customization options include adjustable flow rate ranges, droplet size tuning, and integration with existing automated dispensing systems. Our engineering team can adapt the nozzle to your specific coating chemistry and production line requirements.
FAQ
What is the minimum order quantity?
Our MOQ is 1 unit.
Can the nozzle handle high-viscosity fluids?
Yes, the UCA120 can atomize liquids with viscosity up to 100 cP, making it suitable for various catalyst slurries.
Does the nozzle require air assistance?
No, it uses pure ultrasonic atomization, eliminating the need for compressed air and preventing overspray.
What maintenance is required?
The non-clogging design minimizes maintenance; occasional cleaning with suitable solvent is recommended.
Can the spray pattern be adjusted?
Yes, the flow rate and atomization frequency can be adjusted to achieve different spray widths and deposition rates.
Is CE certification available?
Yes, our ultrasonic spraying equipment including the UAC50 and UAC120 models is CE certified under EU directives.
What is the typical lead time?
Lead time is typically 2-4 weeks depending on order volume and customization requirements.
Inquiry Information
For pricing and further details, contact Beaty Mao at market2@cheersonic.com or +86 133-7254-0303. We offer FOB, CIF, and DDP delivery.
