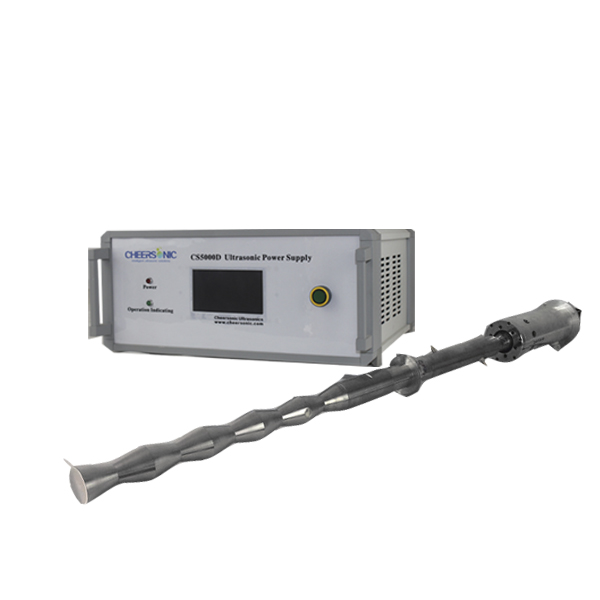

5000W Industrial Ultrasonic Processor for High-Throughput Production Lines
The IUIP5000 is our most powerful ultrasonic processor, delivering 5000W for industrial-scale production. It is designed for continuous operation and processes volumes exceeding 20 liters. With CE certification and a robust structure, it is the ideal choice for high-throughput manufacturing in energy, chemical, and pharmaceutical industries.
Key Selling Points
5000W high power – processes very large volumes efficiently, boosting throughput.
Designed for 24/7 operation – robust construction with cooling options ensures reliability.
CE certified – compliant with EU directives, ready for industrial integration.
Consistent quality – uniform dispersion and stable results over long runs.
Specification
IUIP5000
Frequency
20 kHz
Max Power
5000 W
Processing Volume
20 L – 50 L (or continuous)
Amplitude Adjustment
1% – 100% continuous
Timer
1 s – 99 h programmable
Pulse Mode
Continuous / on-off programmable
Material
Stainless steel / titanium alloy
Models and Options
Options: continuous flow reactors, explosion-proof enclosures, automated control interfaces.
Materials and Structure
Industrial-grade stainless steel and titanium alloy ensure longevity and resistance to corrosion and wear.
Applications
Large-scale nanomaterial production
Industrial coating lines
Pharmaceutical manufacturing
Electronics conductive slurry production
Customization
Customized reactors and control systems available.
Case Study
Biomedical Research Institute (Australia): 3 units in use for 4 years. Cut DNA reliably to 100-1000 bp with minimal batch variation. Processed 18 samples simultaneously, stable and contamination-free.
FAQ
Q: What is the maximum volume? A: It can handle from 20 L to 50 L per batch, or continuous flow.
Q: Can it run continuously? A: Yes, designed for 24/7 industrial operation.
Q: What safety features does it have? A: CE certified, includes overheat protection and emergency stop.
Q: Is it suitable for cleanroom environments? A: Yes, can be integrated into cleanroom sealed chambers.
Q: What is the power supply requirement? A: 380V three-phase, but customized options are available.
