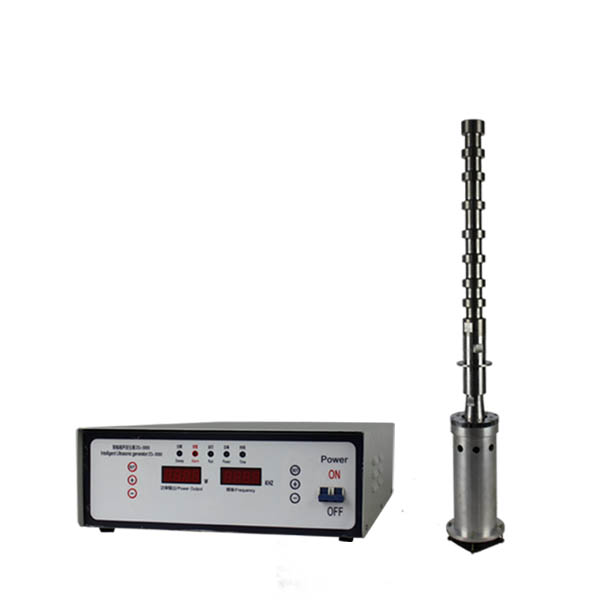

2000W Ultrasonic Homogenizer for Energy Material and Conductive Slurry Processing
The IUIP2000 is a high-power ultrasonic homogenizer designed for demanding applications in energy material processing and conductive slurry preparation. With 2000W output and support for volumes up to 20 L, it efficiently disperses nanoparticles and ensures uniform mixing in large batches. The system is CE certified and built for continuous operation.
Key Selling Points
High-power 2000W – enables processing of large volumes up to 20 L, ideal for production lines.
Amplitude 1-100% – provides precise control to handle varied materials.
Programmable timer and pulse mode – supports flexible process optimization.
CE certified – meets EU safety and EMC standards, suitable for global installation.
Ideal for conductive slurries – uniform dispersion of carbon nanotubes and metal oxides enhances electronic properties.
Specification
IUIP2000
Frequency
20 kHz
Max Power
2000 W
Processing Volume
5 L – 20 L
Amplitude Adjustment
1% – 100% continuous
Timer
1 s – 99 h programmable
Pulse Mode
Continuous / on-off programmable
Material
Stainless steel / titanium alloy
Models and Options
Options: continuous flow chamber, remote control, and explosion-proof motors for solvent applications.
Materials and Structure
Rugged titanium alloy probes and stainless steel components withstand harsh chemicals and continuous operation.
Applications
Fuel cell and battery material processing
Conductive slurry for printed electronics
Composite material production
Water environmental testing (large volume)
Customization
Customizable flow systems and integration with automation.
Case Study
University Nanomaterials Lab (US): Used for CNT aqueous dispersion. Achieved uniform, stable dispersion in 3 minutes, remaining stable for 4 months, unlike bath sonication which failed.
FAQ
Q: What is the processing capacity? A: It can handle up to 20 liters per batch.
Q: Can it be used for continuous production? A: Yes, with an optional continuous flow cell.
Q: Is cooling required? A: For high-power operations, we recommend an air cooling compressor.
Q: What certifications are available? A: CE and ISO9001.
Q: Can I use it for alcohol-based slurries? A: Yes, with appropriate inert materials.
