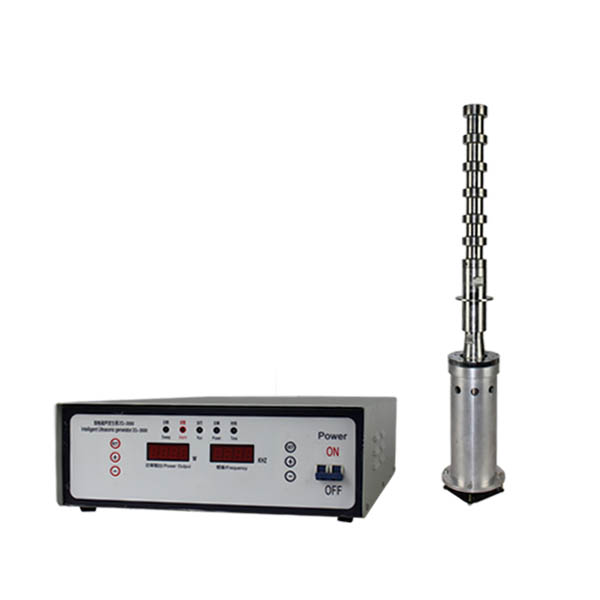

1000W Ultrasonic Liquid Processor for Scale-Up Photoresist and Coating Applications
The IUIP1000 is a 1000W ultrasonic liquid processor engineered for pilot and production-scale dispersion. With a standard frequency of 20 kHz and processing volumes from 1 L to 5 L, it is ideal for photoresist preparation, conductive slurry mixing, and nano-coating formulations. Its amplitude adjustment of 1-100% and programmable timer ensure precise control for demanding applications.
Key Selling Points
High power 1000W – efficiently processes larger volumes (1-5 L) and higher viscosity slurries.
Programmable timer (1s-99h) – allows unattended operation and reproducibility.
CE certified – includes model IUIP1000, ensuring compliance with EU safety standards.
Ideal for coating inks and photoresists – achieves >90% effective adhesion in medical device coating, cutting raw material waste by 60%.
Specification
IUIP1000
Frequency
20 kHz
Max Power
1000 W
Processing Volume
1 L – 5 L
Amplitude Adjustment
1% – 100% continuous
Timer
1 s – 99 h programmable
Pulse Mode
Continuous / on-off programmable
Material
Stainless steel / titanium alloy
Models and Options
Part of IUIP series. Available options: large horn for ≥1 L, continuous flow cell, and remote control.
Materials and Structure
Probes are titanium alloy for robustness and superior acoustic performance; housing in stainless steel for cleanliness and durability.
Applications
Chemical coating & ink industry
Electronics conductive slurry preparation
Cosmetic nano-emulsion formulation
Composite material production
Customization
Custom horns, flow cells, and cooling systems available.
Case Study
Medical device R&D (US): Used 3 units for 2 years. Result: 60% reduction in drug raw material loss, >90% adhesion efficiency, 50% faster batch preparation. Coating thickness uniform, data traceable for regulatory compliance.
FAQ
Q: Can IUIP1000 handle high viscosity liquids? A: Yes, it can process up to 5 L of high viscosity slurries.
Q: Is temperature control possible? A: We recommend an ice bath or cooling compressor for heat-sensitive samples.
Q: What certifications does it have? A: CE (TRCN-26064HCU01) and ISO9001.
Q: Can it be used for continuous processing? A: Yes, with optional flow cell attachment.
Q: What is the warranty? A: Standard one-year warranty, extended available.
